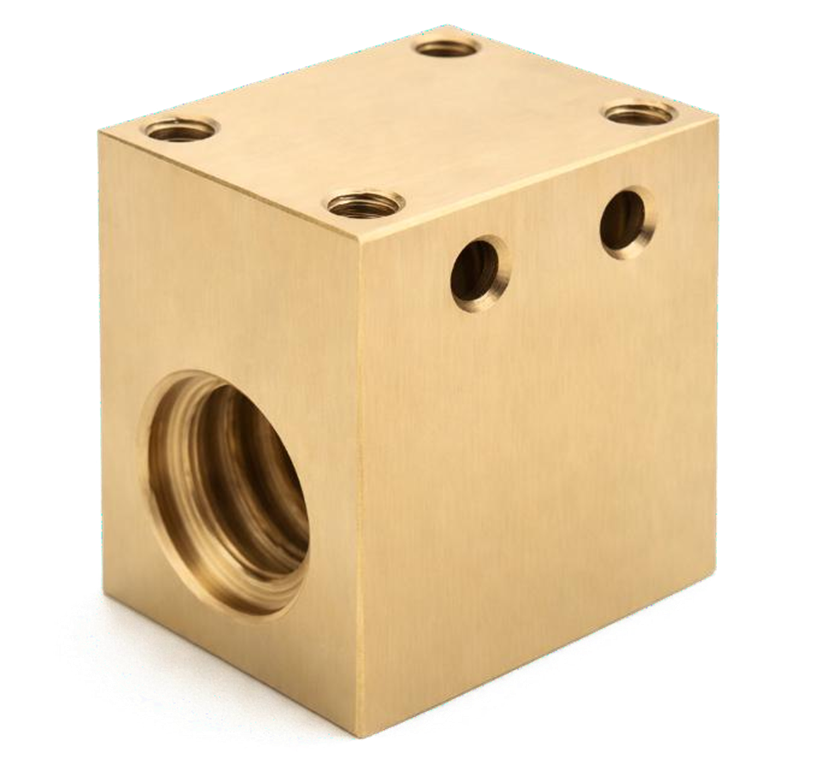

SQUARE NUT WITH THREADED MOUNTING HOLES – SQTH


Standard Materials:

  • Bronze

  • Cast iron

Other materials available upon request, including brass and steel.

Code d pitch W L H h L1 L2 B1 B2 W1 M1 M2 t Dynamic Load (KN)
SQTH-10x□ 10 2
(3, 4, 5, 6, 8, 9)		 20 24 30 20 16 / 8 / 12 M4 / 6 2.55
SQTH-12x□ 12 22 30 34 23 21 9 10 15 13 M5 M5 6 3.92
SQTH-14x□ 14 3 (2,4, 6, 8, 9) 22 30 34 23 21 9 10 15 13 M5 M5 6 4.90
SQTH-16x□ 16 28 35 41 27 25 11 12 18 18 M6 M6 7 6.67
SQTH-18x□ 18 4
(2, 3, 5, 6)		 32 40 45 29 30 16 12 18 22 M6 M6 7 8.72
SQTH-20x□ 20 32 40 45 29 30 16 12 18 22 M6 M6 7 9.81
SQTH-22x□ 22 5
(2, 3, 4, 6)		 36 50 48 30 40 20 12 18 26 M6 M6 7 12.36
SQTH-25x□ 25 36 50 48 30 40 20 12 18 26 M6 M6 7 14.22
SQTH-28x□ 28 44 62 60 38 50 25 16 22 32 M8 M8 8 20.05
SQTH-32x□ 32 6
(3, 4, 5, 7, 8)		 44 62 60 38 50 25 16 22 32 M8 M8 8 22.81
