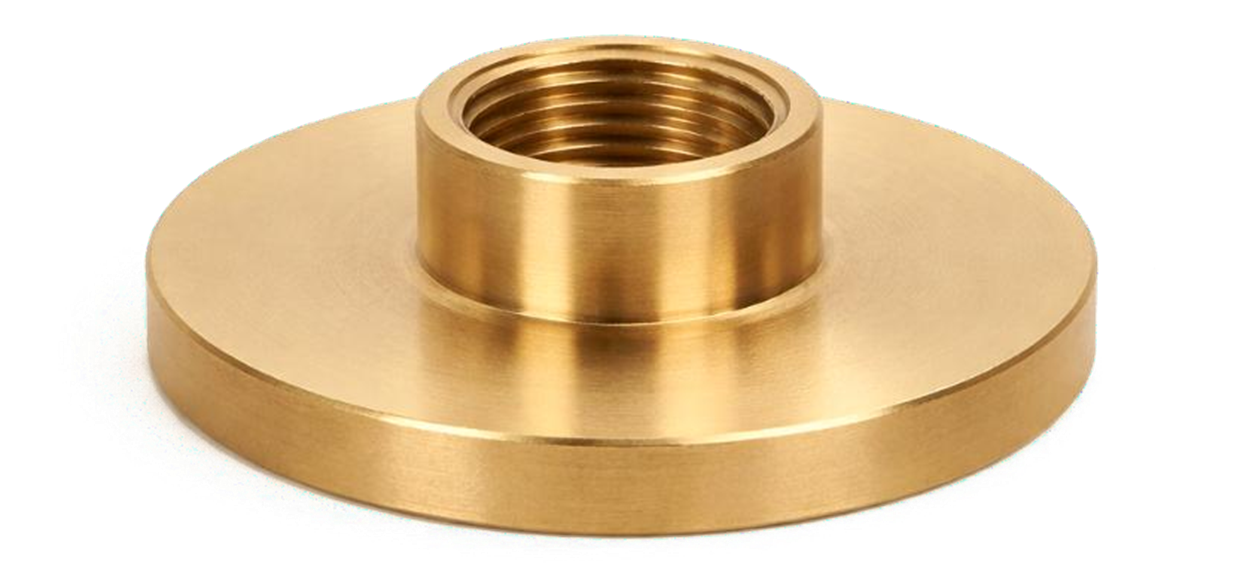

SHORT-LENGHTH ROUND NUT – RNSL
Standard Materials:
Bronze
Cast iron
Other materials available upon request, including brass and steel.
| Code | d | pitch | D1 | D2 | L1 | L2 | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
| Bronze | Steel | |||||||
| RNSL-10x3 | 10 | 3 | 20 | 35 | 15 | 6 | 0.165 | 0.160 |
| RNSL-12x3 | 12 | 3 | 24 | 42 | 20 | 7 | 0.291 | 0.280 |
| RNSL-14x4 | 14 | 4 | 30 | 52 | 24 | 10 | 0.437 | 0.420 |
| RNSL-16x4 | 16 | 4 | 30 | 52 | 24 | 10 | 0.437 | 0.420 |
| RNSL-20x4 | 20 | 4 | 38 | 62 | 26 | 11 | 0.540 | 0.520 |
| RNSL-24x5 | 24 | 5 | 50 | 77 | 33 | 13 | 1.245 | 1.200 |
| RNSL-30x6 | 30 | 6 | 58 | 90 | 48 | 15 | 1.790 | 1.750 |
| RNSL-36x6 | 36 | 6 | 80 | 115 | 60 | 20 | 3.400 | 3.310 |
| RNSL-40x7 | 40 | 7 | 80 | 140 | 65 | 20 | 4.340 | 4.230 |
| RNSL-50x8 | 50 | 8 | 90 | 170 | 70 | 20 | 5.690 | 5.500 |
