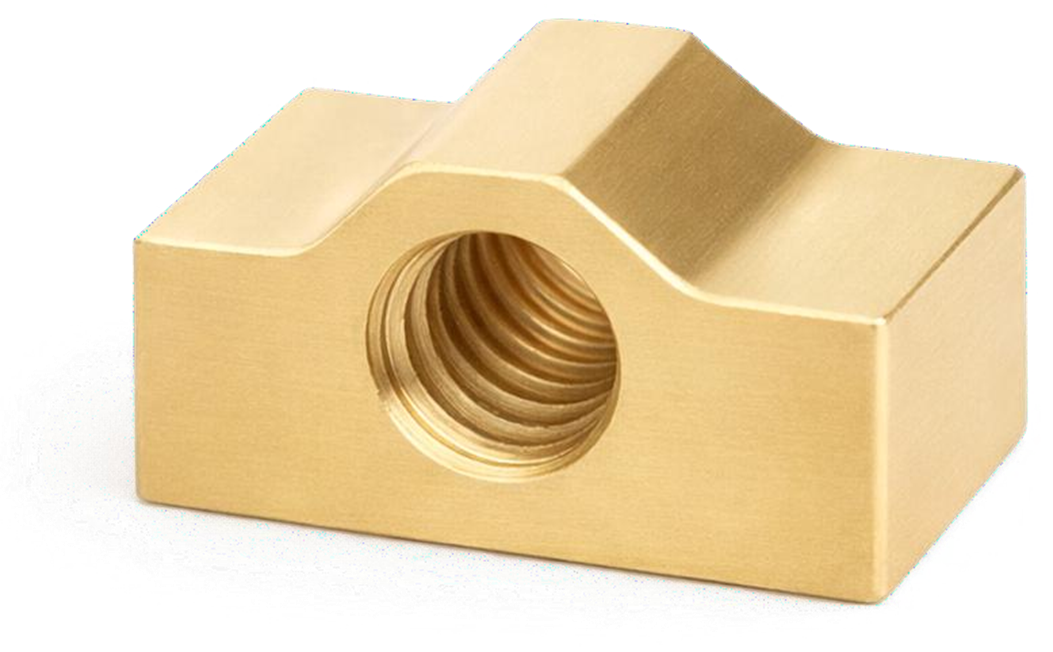

WIDENED SQUARE NUT – WSQB


Standard Materials:

  • Bronze

  • Cast iron

Other materials available upon request, including brass and steel.

Code d pitch W H L H W1 W2 C M L2
WSQN -10x□ 10 2
(3, 4, 5, 6, 8, 9)		 30 20 24 10 20 8 4 M4 8
WSQN -12x□ 12 38 22 30 11 26 10 5 M5 10
WSQN -14x□ 14 3
(2, 4, 5, 6, 8, 9)		 38 2 30 11 26 10 5 M5 10
WSQN -16x□ 16 44 28 35 14 32 10 5 M5 10
WSQN -18x□ 18 4
(2, 3, 5, 6)		 48 32 40 16 36 11 6 M6 12
WSQN -20x□ 20 48 32 40 16 36 11 6 M6 12
WSQN -22x□ 22 5
(2, 3, 4, 6)		 62 38 50 20 46 14 10 M8 16
WSQN -25x□ 25 62 38 50 20 46 14 10 M8 16
WSQN -28x□ 28 68 47 56 25 52 14 10 M8 16
WSQN -32x□ 32 6
(3, 4, 5, 7, 8)		 68 47 56 25 52 14 10 M8 16
