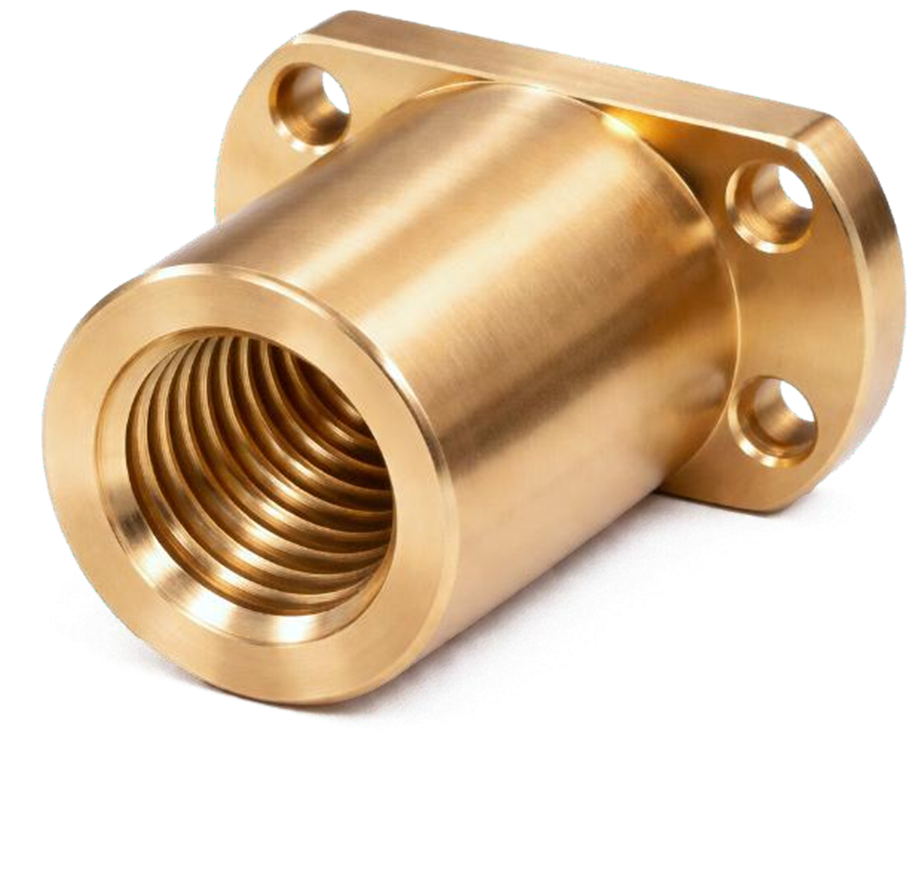

WIDE FLANGED ROUND NUT– RNWF


Standard Materials:

  • Bronze

  • Cast iron

Other materials available upon request, including brass and steel.

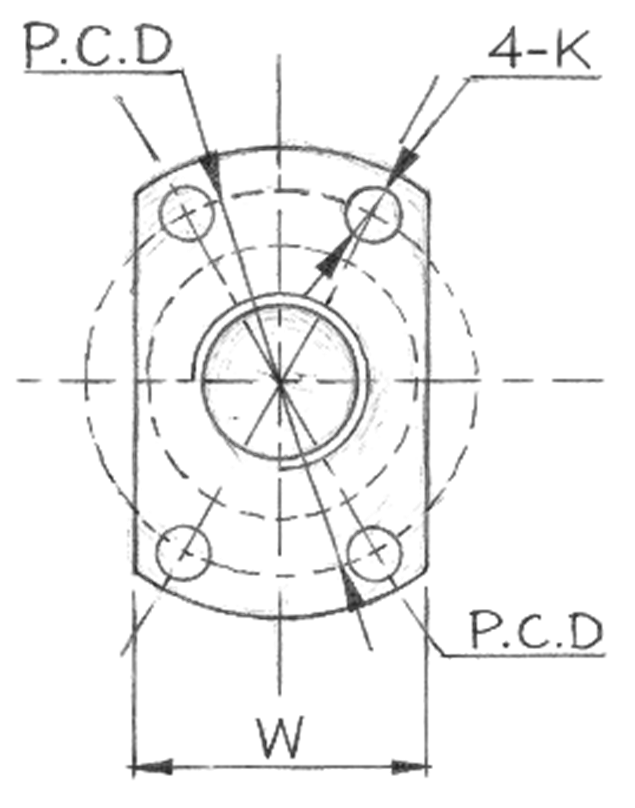

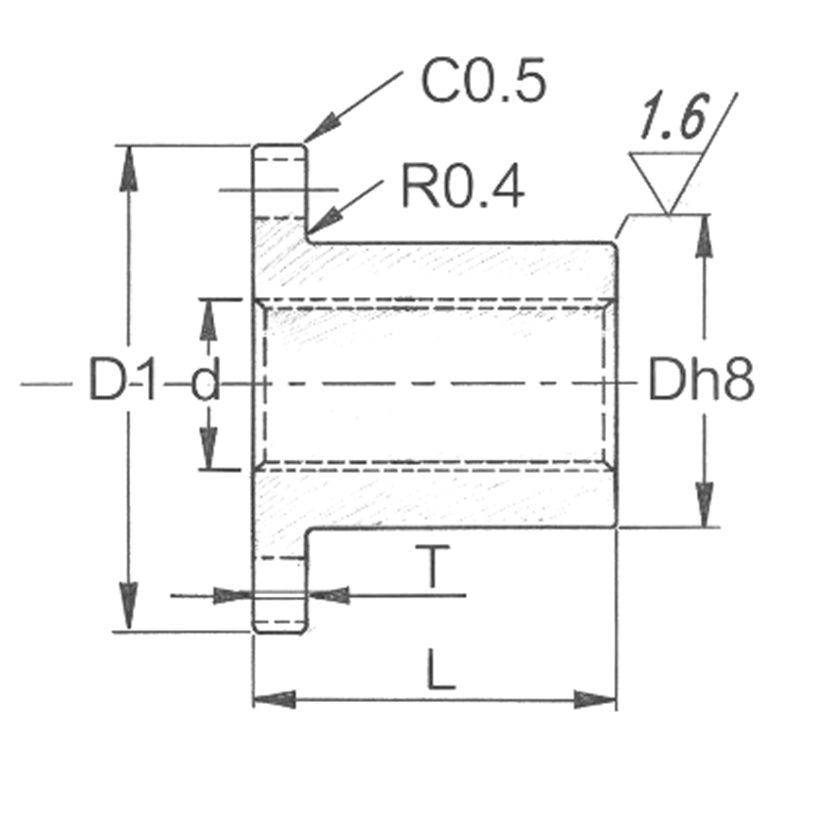

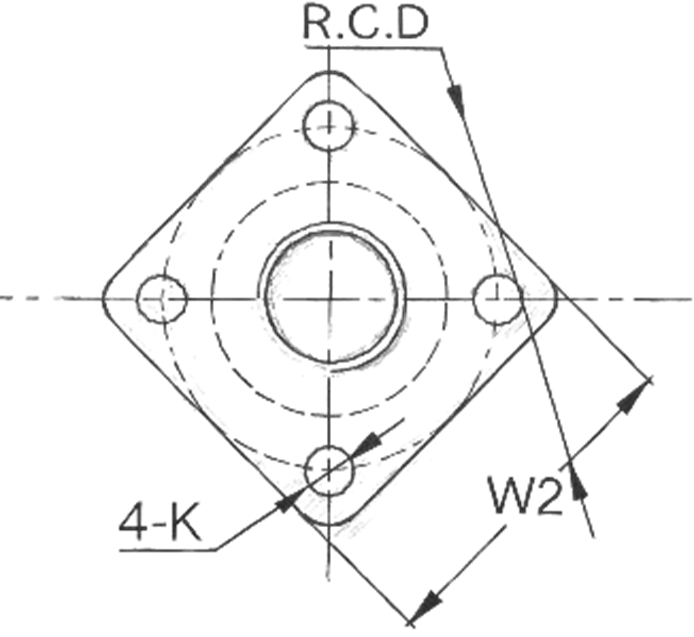

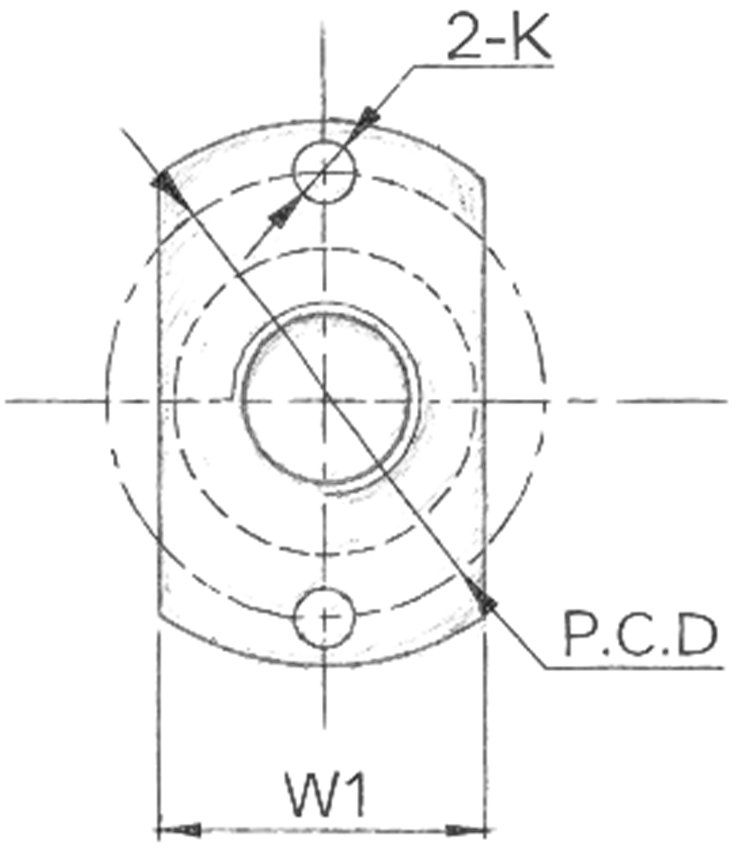

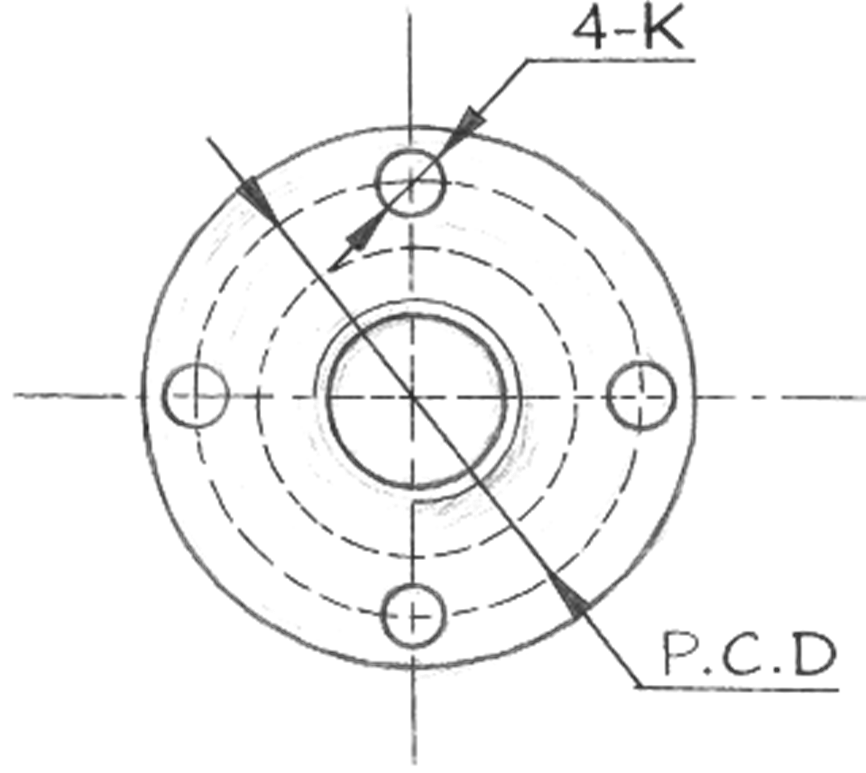

Code d pitch D L D1 P.C.D T W W1 W2 K
RNWF□-8x□ 8 1.5 (1.2) 15 20 30 22 5 / 15 / 4.3
RNWF□-10x□ 10 2
(3, 4, 5, 6, 8, 9)		 20 24 36 26 5 22 20 / 4.3
RNWF□-12x□ 12 22 30 44 31 5 24 22 / 5.4
RNWF□-14x□ 14 3
(2, 4, 5, 6, 8, 9)		 22 30 44 31 5 24 22 33 5.4
RNWF□-16x□ 16 28 35 51 38 6 30 28 38 6.6
RNWF□-18x□ 18 4
(2, 3, 5, 6)		 32 40 56 42 6 34 32 / 6.6
RNWF□-20x□ 20 32 40 56 42 6 34 32 42 6.6
RNWF□-22x□ 22 5
(2, 3, 4, 6)		 36 50 61 47 7 40 36 47 6.6
RNWF□-25x□ 25 36 50 61 47 7 40 36 47 6.6
RNWF□-28x□ 28 44 56 76 58 8 48 44 58 9.0
RNWF□-32x□ 32 6
(3, 4, 5, 7, 8)		 44 56 76 58 8 48 44 58 9.0
RNWF□-36x□ 36 52 60 84 66 8 56 52 / 9.0
RNWF□-40x□ 40 58 70 98 76 10 62 58 / 11
RNWF□-50x□ 50 8 (4, 5, 6, 7, 10) 68 80 109 85 10 72 68 / 11
